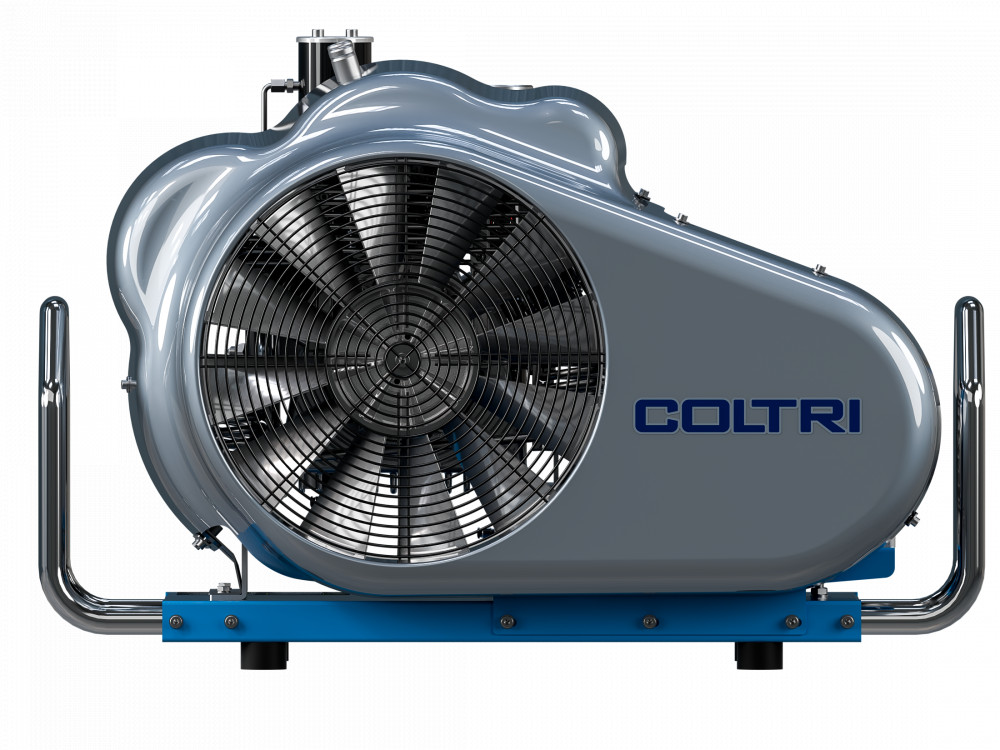

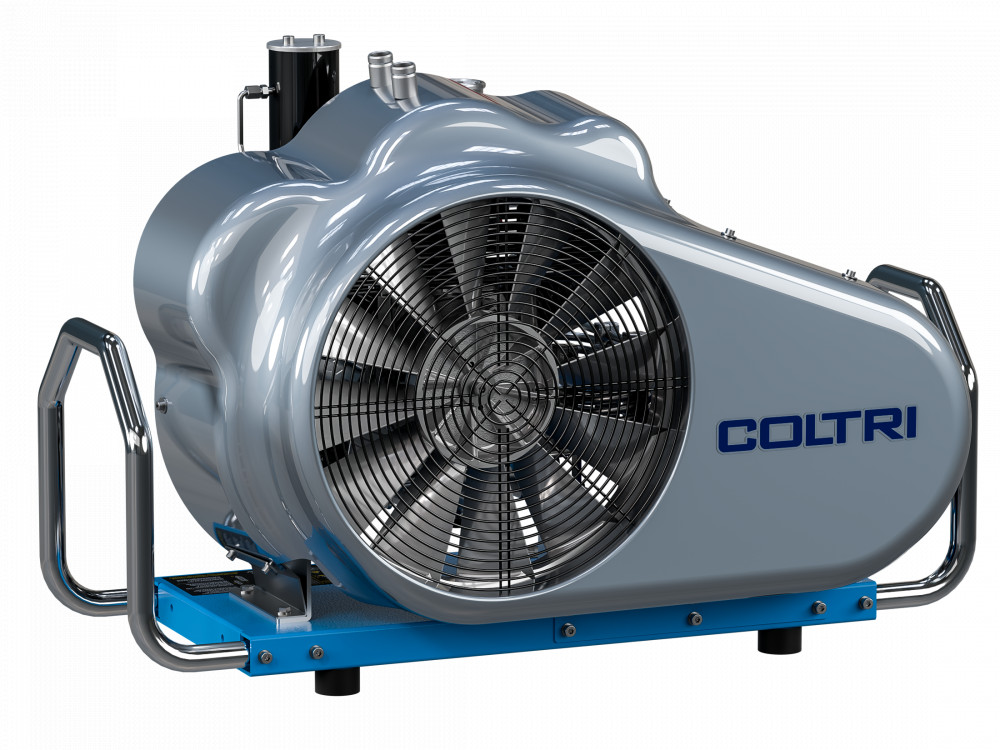

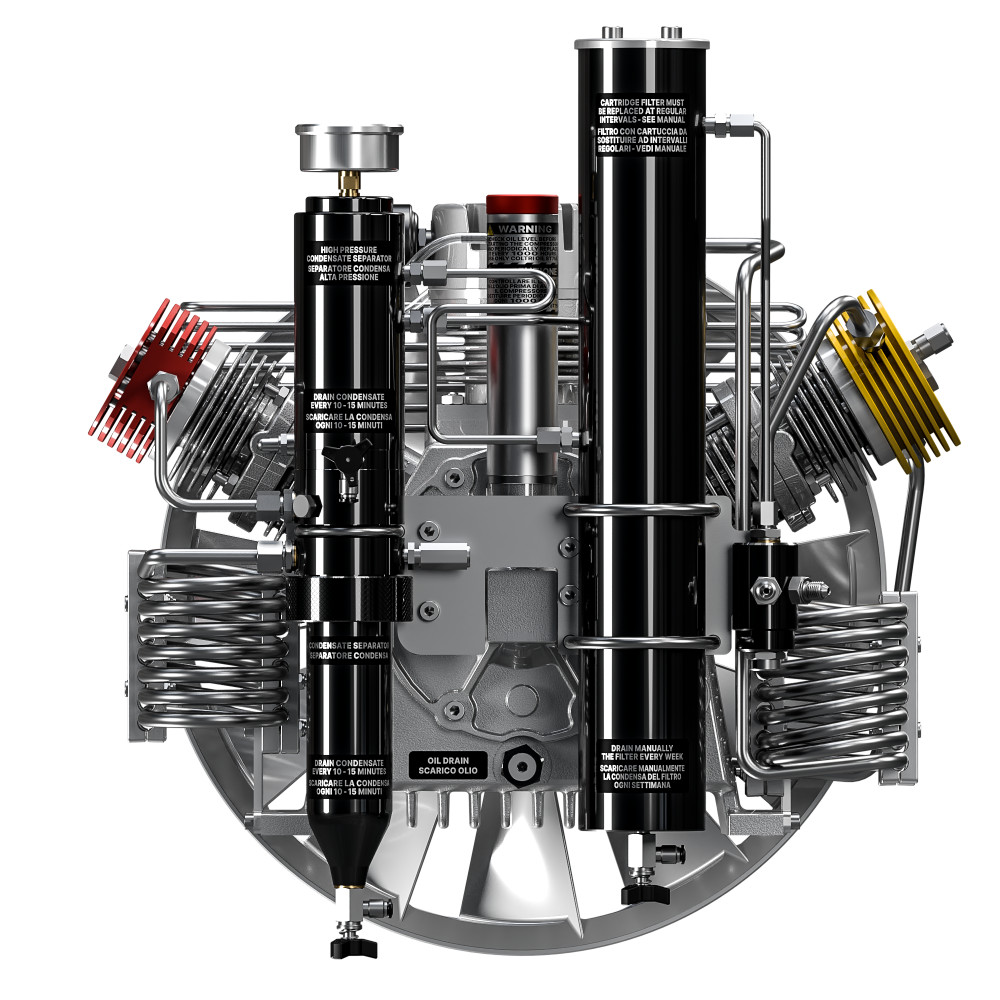

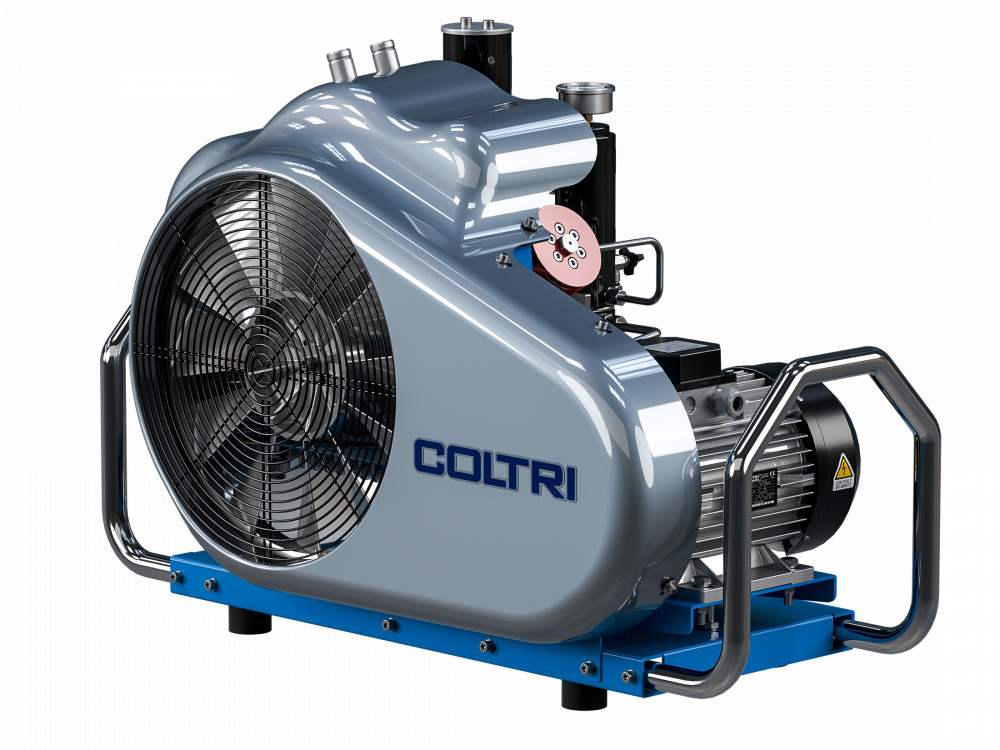

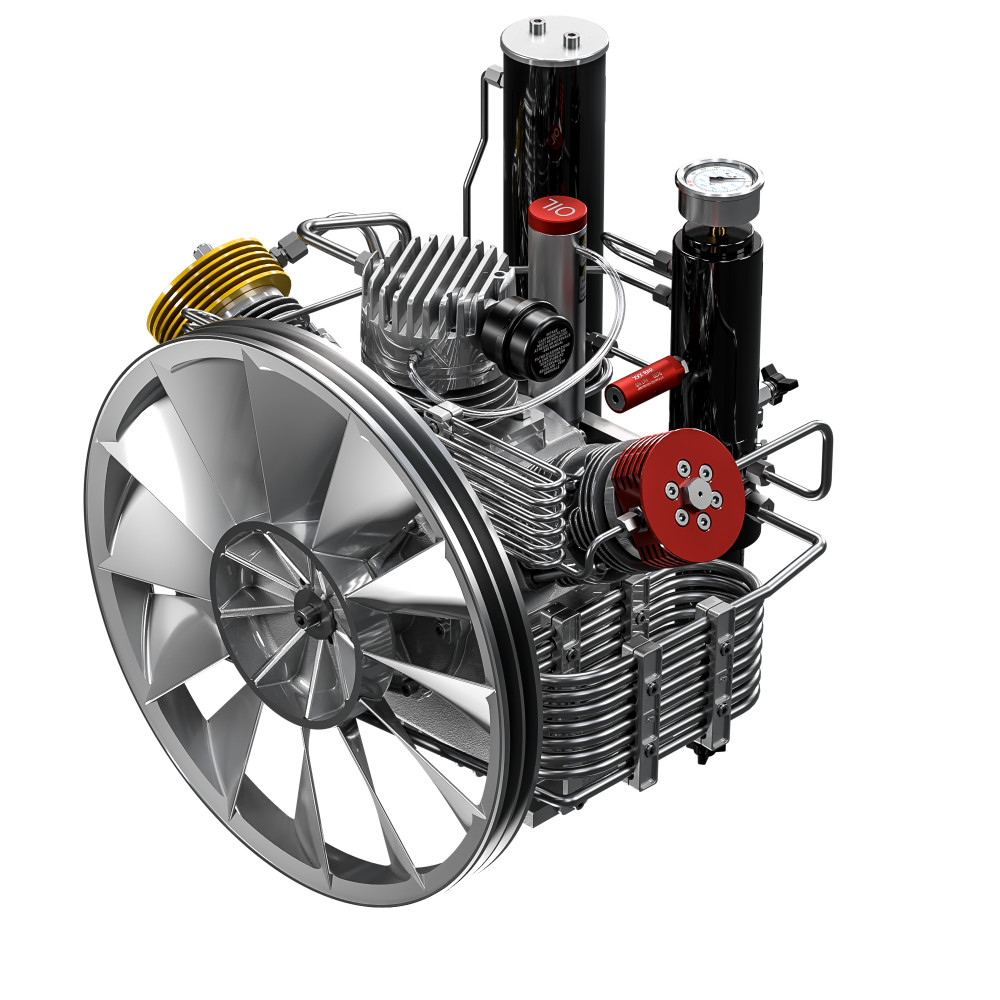

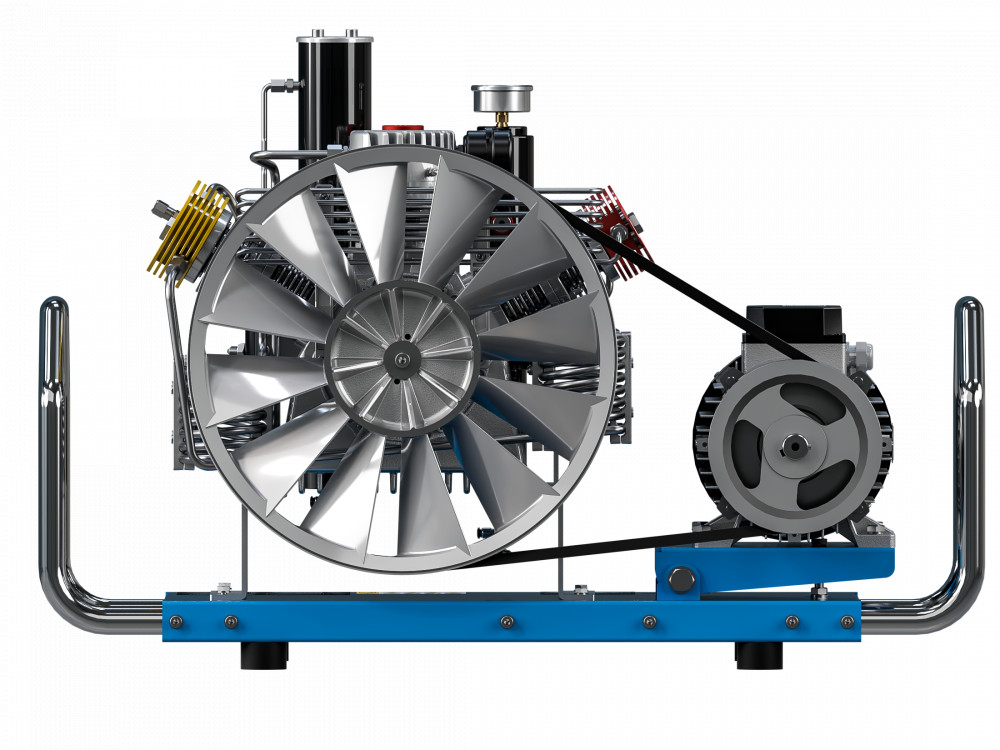

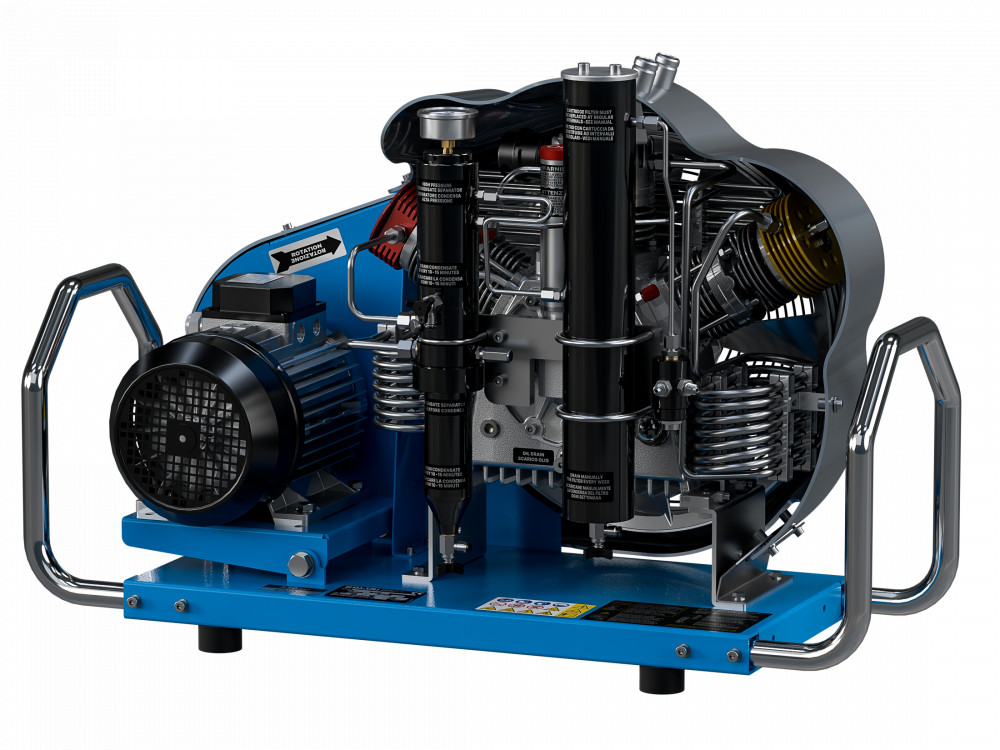

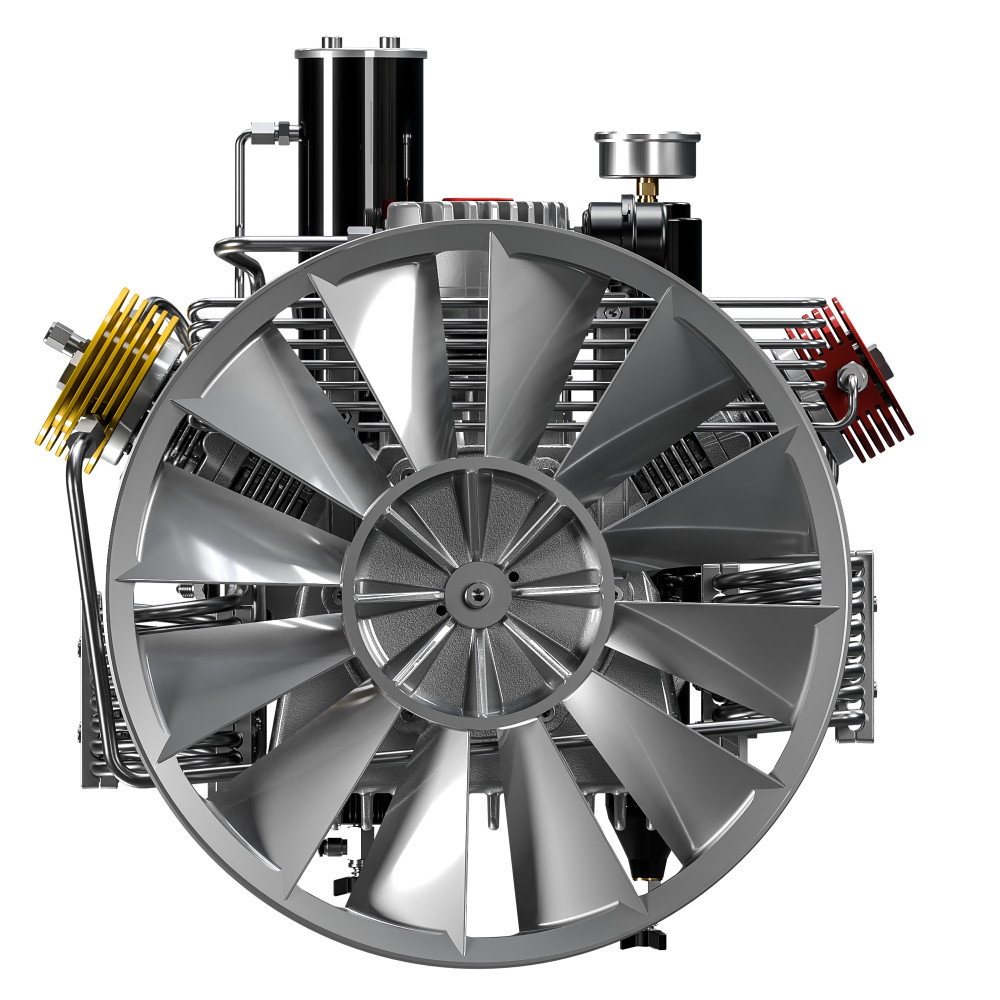

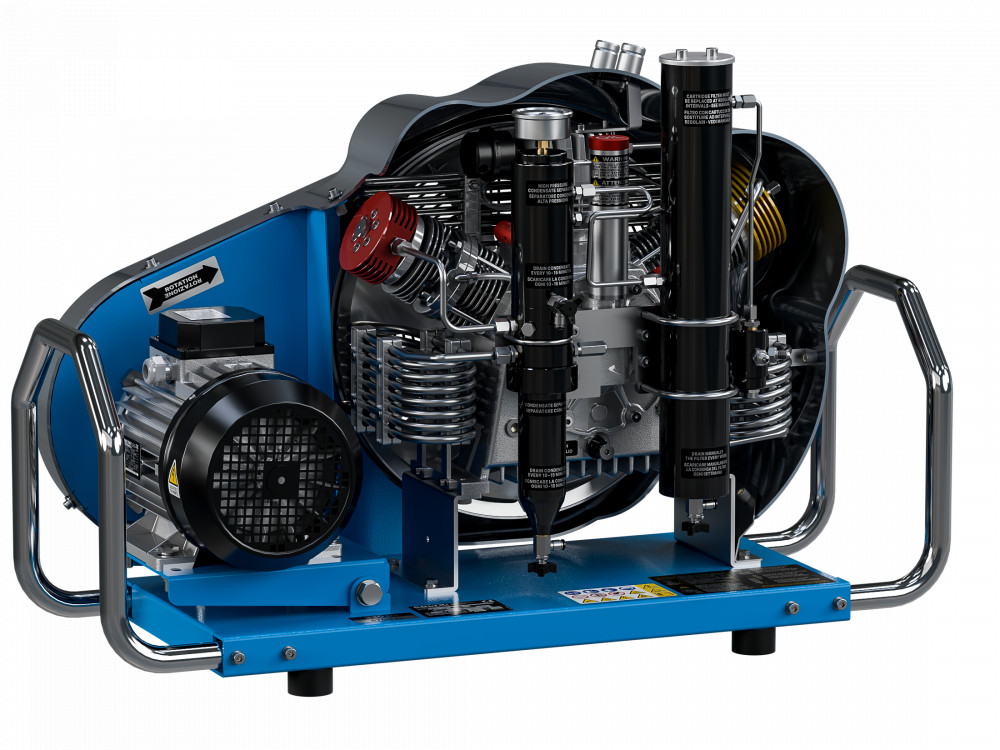

Coltri Smart EM - Three Phase

Name: Coltri Smart EM - Three Phase
Brand: Coltri
SKU: SC002028
Price: 6616.4 EUR
Availability: InStock

Article No.:

SC002028

In supplier stock

SMART breathing air compressors represent the evolution
of the Standard, one of the best known and best-selling
models in the world.

Brand:

Coltri

Shipping time, if product is in supplier stock:

2-4 weeks

Type:

235L/min

315L/min

6 616.40 €

7 520.80 €

Saving 904.40 €

Details

Details

Standard equipment:

- 2 Cylinder connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
- 2 whips 1.2m long
- Pressure maintenance valve
- Maxifilter filter system
- Carrying handles
- Frame color Blue RAL 5015

Technical data:

- Type of gas: Breathing air (EN 12021) – Nitrox 40% max O2 – Helium – Nitrogen

- Intake pressure: Atmospheric max 300 millibars

- Nominal pressure: 250 bar / 330 bar / 360 bar

- Working pressure: 232 bar / 300 bar / 330 bar

- Max working pressure: 232 bar (elettrico monofase) – 420 bar (elettrico trifase)

- Permissible ambient temperature range: -10° C ÷ +40° C

- Permissible altitude: 0 ÷ 1.500 m SLM

- Max permissible tilt: 6°

- Design: Basic

- Operating voltage, standard: 230 V; 50 Hz / 400 V; 50 Hz

- Other operating voltage: On three-phase electric motor at 60Hz the power (kW / Hp) increases by 20%.
230 V, 50 Hz / 440 V, 60 Hz

- Oil: Synthetic Coltri Oil ST 755

- Oil change interval: 1 year / 1,000 h

- Frame: Steel thickness 1.5 mm – color RAL 5015 – Powder coating – scratch-resistant
